型号(Models)
|

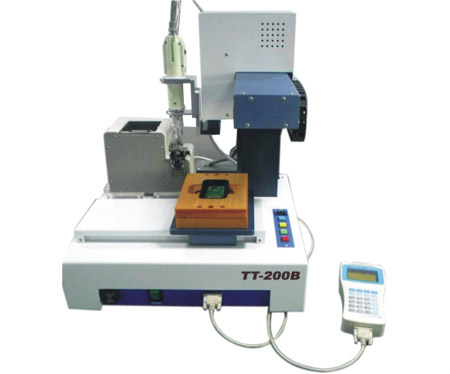

TT-200B
|
锁付范围 Working Range X/Y/Z(mm)
|
200mm/200mm/50mm
|
最大负载 Load Y-AXIS/Z-AXIS
|
8kg/4kg
|
移动速度 X&Y/Z(mm/sec)
|
1-800/400
|
分解能力 Resolution
|
0.01mm/Axis
|
重复精度 Repetitive Positioning Accuracy
|
0.01mm/Axis
|
程序记录模式 Program Capacity
|
至少每组100、每组4000 points(可支持上传电脑)
<}100{>100∽4000 points every Group (uploadable through compurer)<0}
|
显示方式 Program Display
|
Teach Pendant LCD
|
马达系统 Motor System
|
日制微步进级精密马达
|
操作模式 Control Method
|
PTP&CP
|
传动方式 Driving Method
|
同步带<}100{>Synchronous driving beit<0}
|
运动补间功能 Interpolation Function
|
3 axis (3D立体空间任意路线皆可)
<}100{>3axis (any route in 3Dspace)<0}
|
编辑模式 Programming Method
|
教导盒/PC<}99{>Teaching box/PC<0}
|
1/0讯号1/O Signals Port
|
16Inputs/16 Outputs
|
外部控制接口 External Control Interface
|
RS232
|
输入电源 Power Supply
|
全电压 AC110V-220V 300W<}34{>Full
voltage:AC110V-220V 300W<0}
|
工作环境温度 Working Temperature
|
100{>5-40℃<0}
|
工作环境湿度Working Relative Humidity
|
20-90% no condensation
|
外形尺寸 Dimensions (W×D×Hmm)
|
436×428×500
|
本体重量 Robot Weight (kg)
|
39kg
|
